Cable Ladder Tray Production Line
The stepped cable tray is a cable management device. It adopts a ladder structure design. A solid support structure is formed between the cross beams and longitudinal beams. It has a high load-bearing capacity and can withstand heavier cable loads, thereby achieving cable organization and protection and transmission, this equipment produces longitudinal beams of stepped cable trays, with superior structure and stable and efficient output. Accept customized products and we will give you the best solution according to your needs.

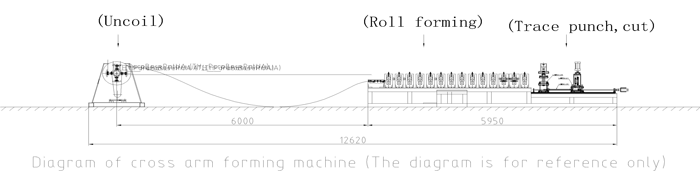

main component
1、 open coil ，300 type open coil, passive feeding, bearing 1.5 tons, with brake function
2、 roller press forming part ， spindle φ 60mm, surface coated with hard chromium, forming roll 14 rows, roll material: Cr 12
3、 tracking punch, cut off ， hydraulic punch, cut off, hydraulic system 1 set of 5.5+4.0+4.0KW
4 、unloading rack ， passive unloading rack 1 branch
Technical Parameters
order number | project | unit | numerical value |
1 | Material width | Mm | 84mm |
2 | Material thickness | Mm | 0.8～2.0mm |
3 | material type | Galvanized strip steel / black strip | |
4 | Equipment running speed | m/min | 1-18m/min |
5 | power | Kw | 30KW |
