Cable Ladder Tray Machine
The ladder cable tray has two parts: the side wall and the ladder. We have designed and produced two roll forming machines to produce the two parts of the ladder cable tray respectively, the ladder edge machine and the ladder support machine. You also need a A welding machine welds them together. The width of the ladder frame is the length of the rungs and the length of the ladder frame is the length of the side walls. Therefore, the ladder type cable ladder does not require a large investment, just two roll forming machines, one for the cable ladder and one for the steps, and then an automatic or manual welding machine.

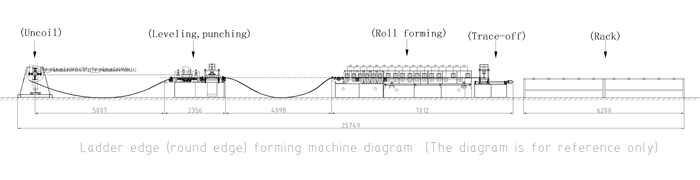

Main Component
1、 open coil machine ， 300 type open coil, passive feeding, load-bearing 1.5 tons, with brake function
2、 leveling, punching, cut off —— hydraulic system 111 KW, hydraulic cut off,
3、 High-speed platform ， frequency conversion control, 1 high-speed platform, forward and reverse wire rod width adjustment
4、 roller forming part ， spindle φ 60mm, surface plating hard chromium, forming roller 6 rows, roller material: GCr 15, lengthened feed guide position, 1 set of plane calibration after forming
5 、unloading rack ， passive unloading rack: 1 branch
Technical Parameters
serial number | project | unit | numerical value |
1 | Material width | Mm | 60～230mm |
2 | Material thickness | Mm | 0.5～2.0mm |
3 | material type | Galvanized strip steel / galvanized steel plate | |
4 | Equipment running speed | m/min | 1-12m/min |
5 | power | Kw | 32KW |
