Ladder Cable Tray Roll Forming Line

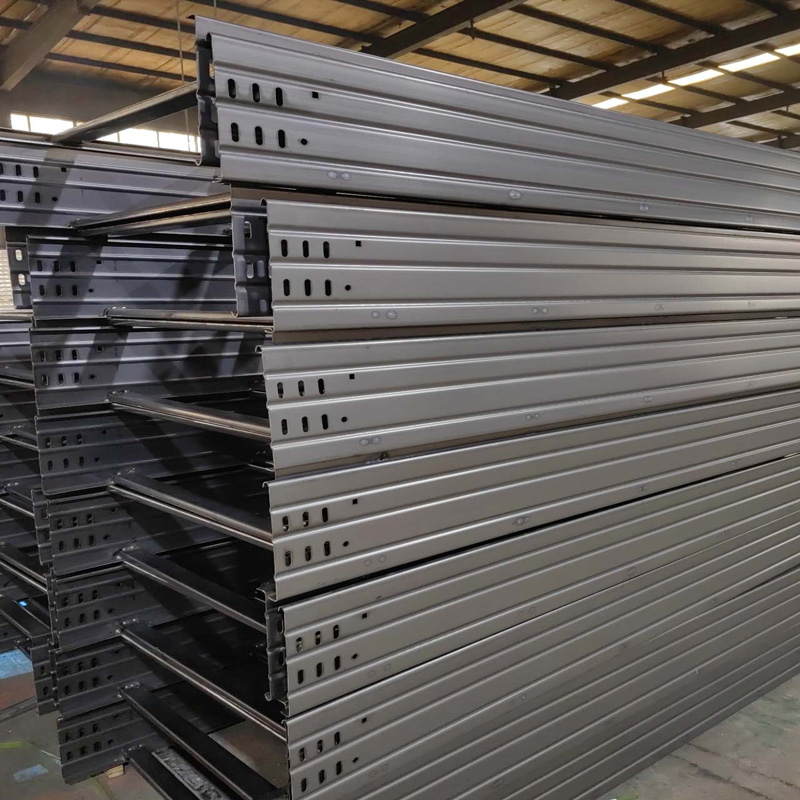

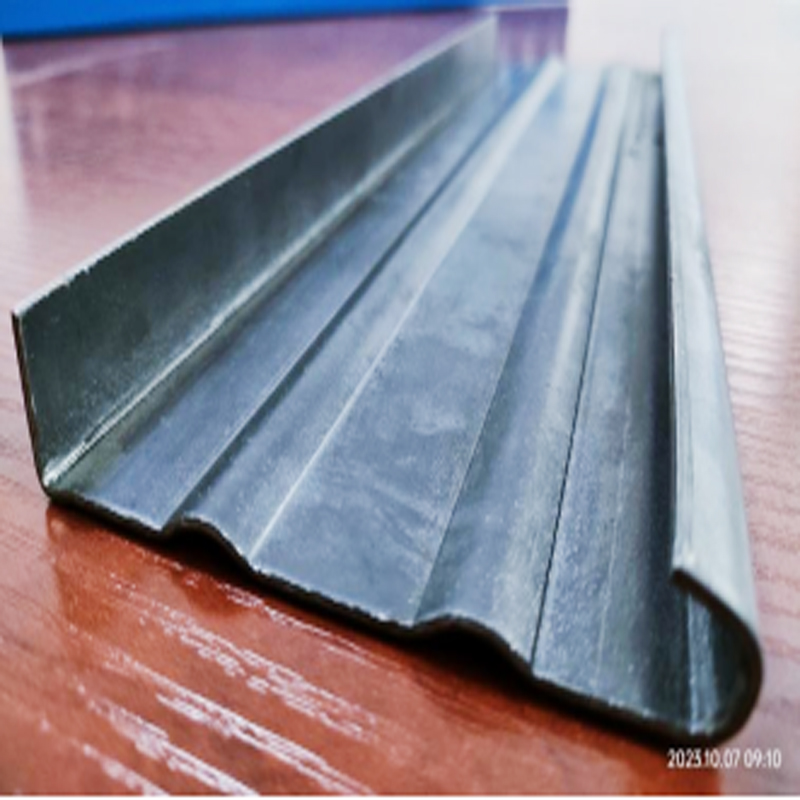

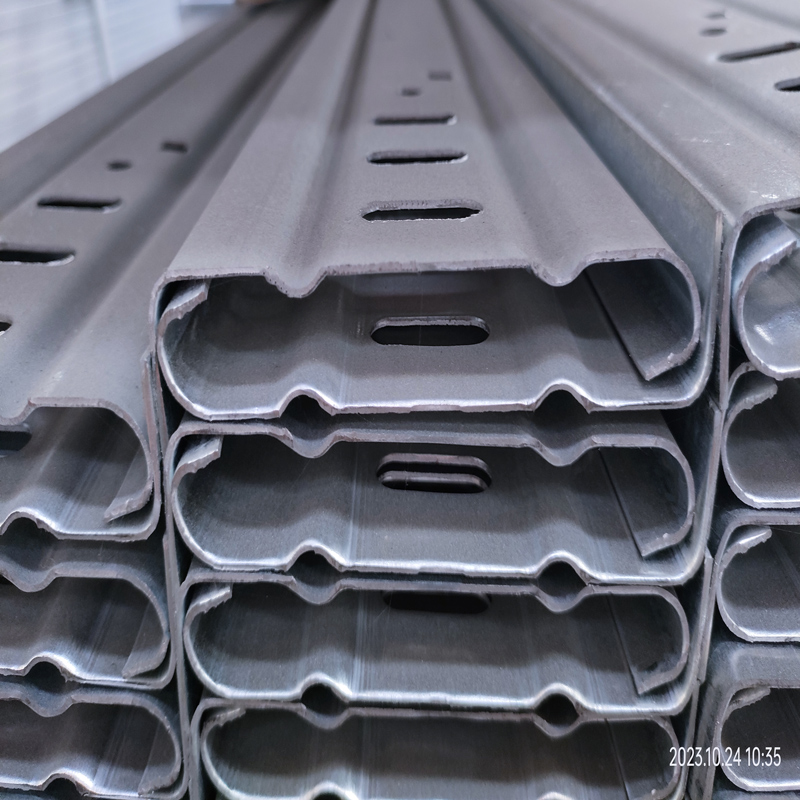

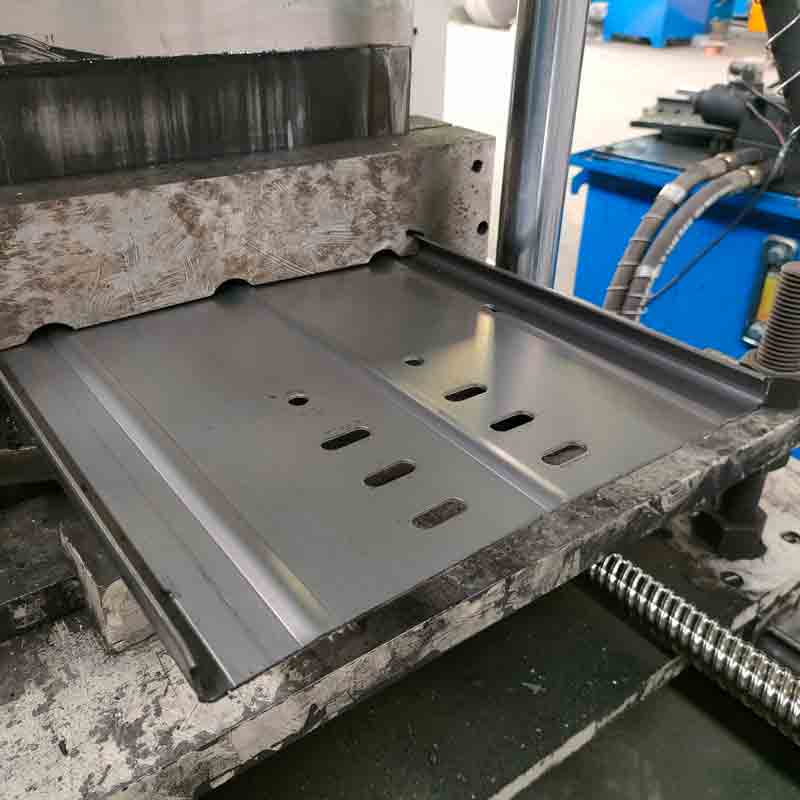

This equipment produces ladder-type cable tray side panels. The unique arc design improves the overall bending resistance of the bridge. The bottom plate is pressed with reinforced ribs, with beautiful appearance and large load capacity.
Production specifications are customized according to your needs to provide you with the best solution

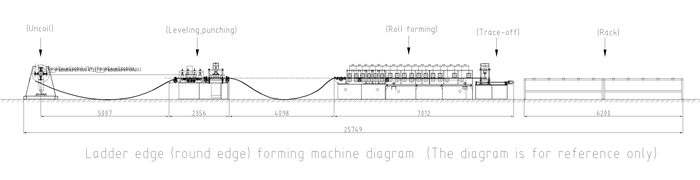

main component
1 、Uncoiler machine hydraulic loading, passive feeding, load bearing 5 tons, with brake function
2、 leveling and punching integrated machine ，leveling up 3 down 4,1 set of hydraulic system, hydraulic cut-off, hydraulic punching
3、 roller forming part ，spindle surface plating hard chromium, forming after the plane straight 1 set, roll material: GCr12, lengthened feed guide position
4 、Tracking cut ，hydraulic cut (plug), servo tracking, a set of hydraulic system
5、 Passive unloading rack 2 sets
Technical Parameters
order number | project | unit | numerical value |
1 | Material width | Mm | 60～350mm |
2 | Material thickness | Mm | 0.8～3.0mm |
3 | material type | Galvanized strip steel / galvanized steel plate | |
4 | Equipment running speed | m/min | 1-35m/min |
5 | power | Kw | 45KW |
