Cable Tray Cover Production Machine
This production line is a small production line specially developed and produced by Zhike Qida for cable tray covers. It is a cost-effective equipment. It is cheap and has great uses, making production more efficient.
Customized models can be provided, given your needs, we will give you the best solution!

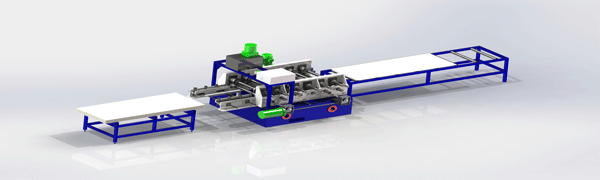

main component
1. One loading platform, square tube welding

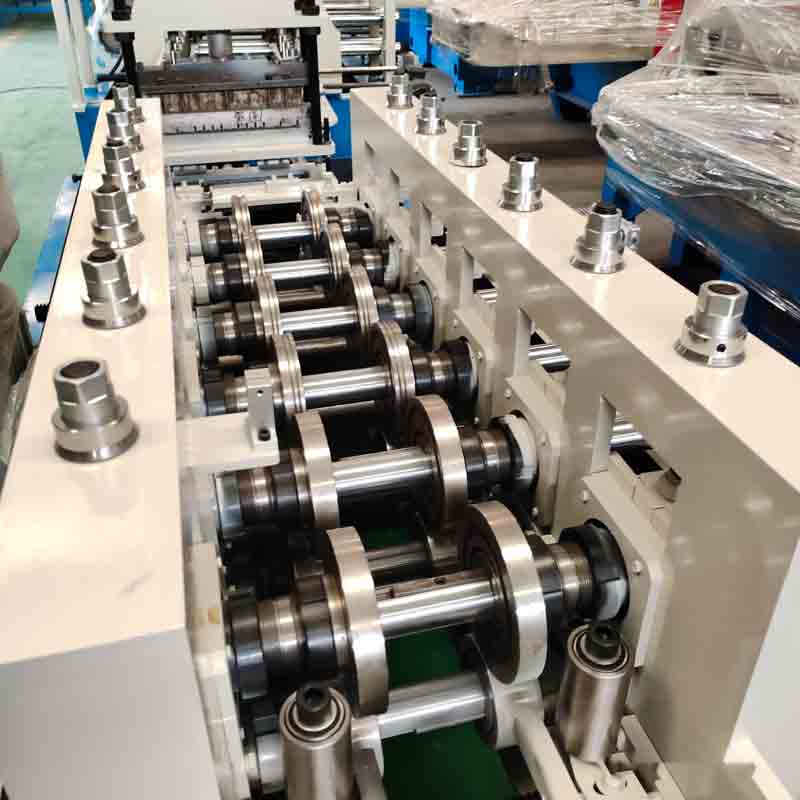

2. Roll forming part, main shaft φ60mm, surface hard chrome plating, 6 rows of forming rollers, reinforced ribs, hydraulic punching,
Roll material: GCr15, 1 set of flat surface straightening after forming
3. One unloading rack
4. PLC control cabinet
Technical Parameters
order number | project | unit | numerical value |
1 | Material width | Mm | 60～1030mm |
2 | Material thickness | Mm | 0.5～1.8mm |
3 | material type | galvanized steel strip | |
4 | Equipment running speed | m/min | 1-12m/min |
5 | power | Kw | 10KW |
