Cable Bridge Roll Forming Machine

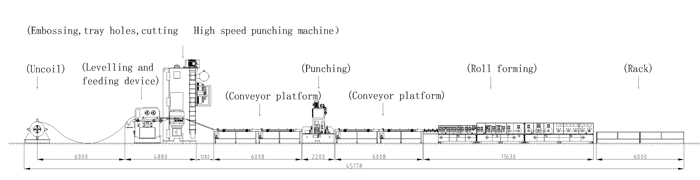

We offer a complete cable tray production line for manufacturing various models of cable trays for carrying and switching cables. All cable trays and their covers are rolled and formed in-house including decoilers, straighteners, feeders, roll forming machines, punching units, etc.

Cable tray roll forming machines are commonly used for cable management in commercial and industrial buildings. This intelligent roll forming machine can produce different types of cable trays. For example, it can use different raw materials such as hot-dip galvanized steel sheets, pre-galvanized steel sheets, hot-rolled and cold-rolled steel sheets, stainless steel and aluminum to produce solid-bottom cable trays, trough-type Cable tray, trough cable tray, perforated cable tray, non-hole cable tray and trough cable tray, etc. Material thickness range is 0.6mm-1.5mm or 1.8-3mm. You can set up 10 different lengths for your cable tray. Our roll forming machines produce a wide range of sizes and automatically convert from one size to another via motor, not only in width but also in height. Just enter the required data into the touch screen and wait a few seconds. Another innovation is that one machine can produce cable trays and cable covers of corresponding sizes. The replacement time only takes 30 minutes, the operation is simple, the cost is low, and the floor space is saved. We develop different solutions based on customers' drawings, tolerances and budgets, and provide professional one-on-one services to meet your various needs. No matter which production line you choose, the quality of Linbei Machinery will ensure you get perfectly functional profiles. We are able to produce more equipment, such as cable tray support roll forming machines, DIN rail roll forming machines and anti-seismic bracket roll forming machines, light steel keel roll forming machines, etc.

We have been specializing in equipment manufacturing for 16 years. We are mainly engaged in a full range of cable tray production lines, bridge supporting equipment, fully automatic welding machines, agricultural equipment, etc. Our products are sold to Southeast Asia, Africa, Europe and other regions.

Products and applications

After-sales service

1. We will send our technicians to install and debug the equipment.

2. We will train your workers to ensure your production

3. Provide comprehensive technical support during and after the warranty period. Feedback to our customers as soon as possible.

4. Spare parts Provide spare parts and wearing parts in a timely manner.
