Roll Forming Machine For Cable Tray

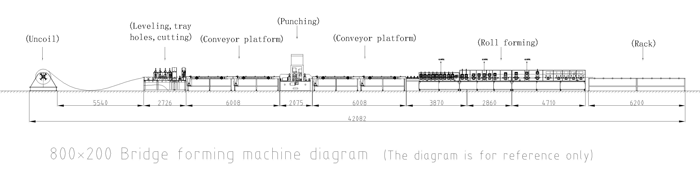

Equipment overview

1. Through-shaft design, the production width and height of the machine are electrically adjusted, making it easy to control.

2. The rolling station is level 25. The main machine is composed of AC motor, reducer, high-precision linear guide rail, left and right transmission boxes, horizontal adjustment system, rolling mold, etc. The machine base and transmission adopt welded structure and are hardened. The roller material for CR12

3. The roller adopts a combined structure, the roll forming speed is fast or the resistance is small, and the metal sheet is easy to feed, which ensures the accuracy and stability of roll forming!

1. Improve production efficiency: The cable tray roll forming machine adopts automated operation and can continuously complete rolling, forming, cutting and other processes. The production speed is fast, which greatly improves production efficiency.

2. Save labor costs: The roll forming machine can replace multiple workers for production operations, reducing the company's investment in human resources and reducing labor costs.

3. Improve product quality: The cable tray roll forming machine uses precise dimensional control and stable pressure to make the formed cable tray accurate in size, neat edges, and smooth surface, improving the appearance quality and service life of the product.
