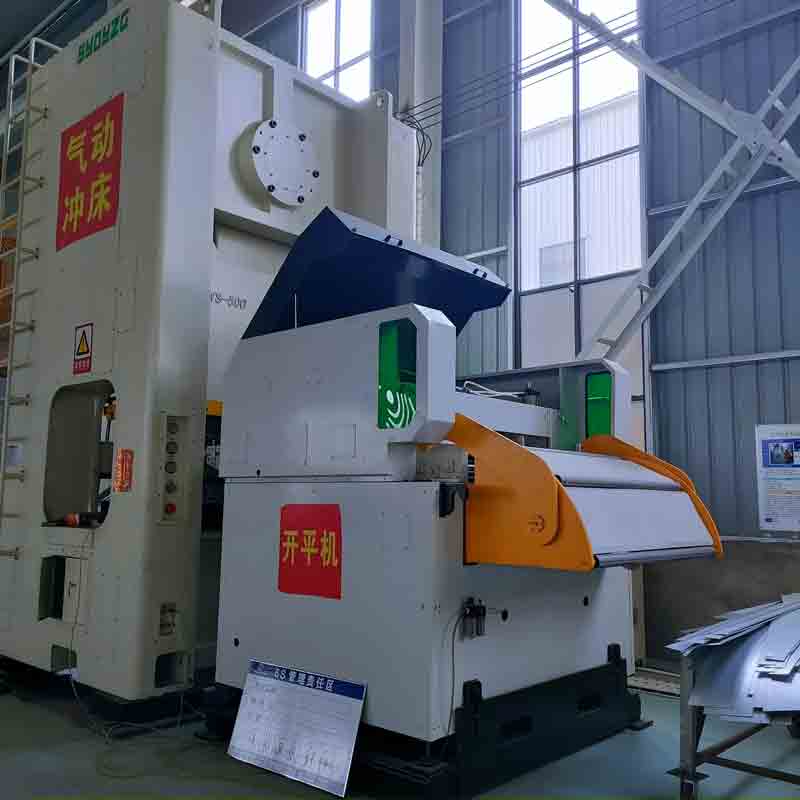

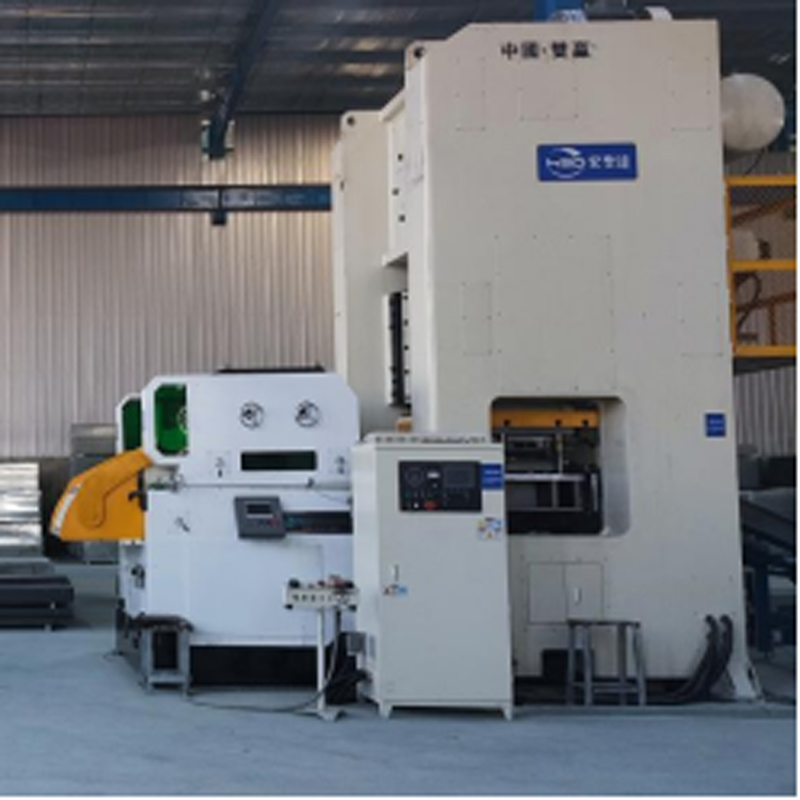

Metal Tape Feeder

Technical Parameters:

1. Material: galvanized steel strip, etc.

2. Material thickness: 0.5～2.0mm

3. Material width 100~1250mm

4. Production efficiency: 0～16m/min (adjustable with variable frequency)

5. Roller pressing method: pneumatic pressing

6. Leveling adjustment method: worm gear adjustment

7. Power mode: servo motor + precision planetary reducer

8. Leveling shaft composition: upper 4 and lower 5 (leveling shaft) + upper 2 and lower 2 (pinch shaft)

9. Change model: manual adjustment

10. Operating air pressure: 0.6MPa

11. Power 7.5kw

12. Fixing method: foot connection

First of all, our feeder uses advanced conveying technology to flexibly and stably convey materials to designated locations. The equipment is equipped with adjustable conveying speed and conveying volume. Users can flexibly adjust according to production needs and material characteristics to ensure accurate conveying and matching of materials. Our feeders can efficiently transport sheets that are wide or narrow, thin or thick. Secondly, our feeder has a high degree of automation capability and can realize a fully automatic material supply and conveying process. The equipment is equipped with advanced sensors and control systems that can automatically identify the location and quantity of materials and accurately convey them according to set parameters. Automated material supply not only improves production efficiency, but also reduces manual operations and labor intensity, improving work results and quality stability. In addition, our feeders are highly adaptable and flexible. At the same time, we can also customize according to the special needs of users and provide feeders with special specifications and functions to meet the requirements of different industries and processes. Finally, our feeders focus on safety and reliability. The equipment uses high-quality materials and solid structural design to ensure the stability and durability of the equipment. At the same time, the equipment is also equipped with multiple safety devices, such as safety sensors, emergency stop switches, etc., to ensure the safety of operators. To sum up, our feeders are efficient, reliable, flexible and safe.
