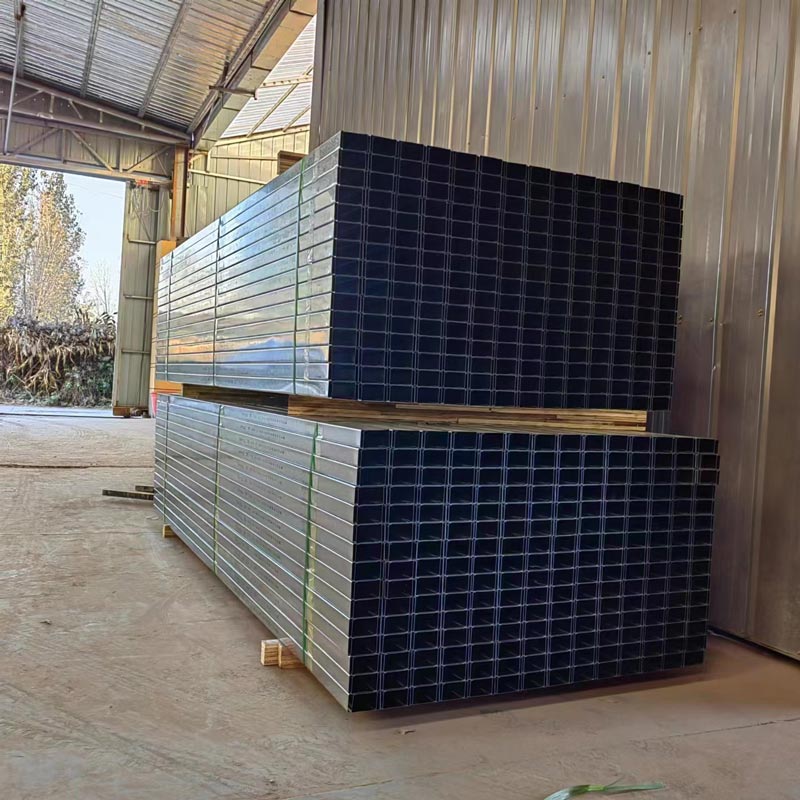

Light Steel Keel Production Line
Light steel keel machine, a piece of equipment dedicated to improving the efficiency and quality of the building decoration industry, is an indispensable tool in modern building construction. This equipment is based on high-precision intelligence and is scientifically designed using German professional cold-bending forming software. It perfectly combines cold-bending technology with building keel manufacturing, providing an efficient, environmentally friendly and safe keel production solution for my country's construction industry.
serial number | name | parameter | Details |
1 | skeleton structure | Machining of integrally welded wall panels for the base | Wall panels adopt surface grinding treatment |
2 | transmission | full gear | Motor-reducer-gear-shaft |
3 | gear | 23 pieces cylindrical gears | Module m=6, number of teeth z=32, thickness=50 |
4 | Bearing | 96 sets of double bearings | NU210 in the front and 6210 in the rear |
5 | axis | Diameter 50 shaft 24 trees | 45# modulation processing 28-32HRC |
6 | power | total power total power | Full load 24KW |
7 | Main motor | 1 motor | 7.5Kw (K77 series) speed ratio 15.84 |
8 | gas station | 3 gear pumps | 5.5Kw hydraulic station |
9 | Punching and shearing | Square guide rail punching and shearing | 100 diameter oil cylinder, 1 pair of special cutters |
10 | Discharge | 1 vertical unit | Hydraulic core expansion 2.5 tons, core expansion range 350-550 |
11 | Roller | 12 forming rollers | Material Cr12 overall quenching heat treatment 58-62HRC |
