Metal Forming Machines With Complete Specifications
The cable tray forming desktop is designed to be simple, effortless to use and effortless to operate. Strict satisfactory manage and protection certification make sure the balance and reliability of the laptop at some stage in the manufacturing process. At the identical time, we additionally supply you with expert running coaching and entire after-sales service, so that you have no worries.

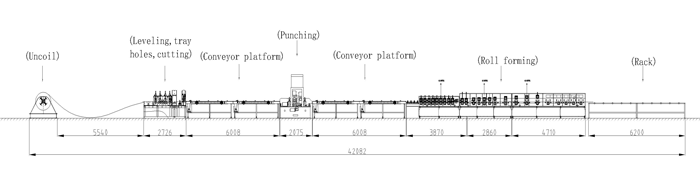

The gear is outfitted with a decoiler with a load potential of eight tons, hydraulic core expansion, and electric powered feeding, which is extra handy to operate. Below is the leveling and cutting. Our leveling computing device will straighten the plate of the steel coil and then reduce it into the required length. , the steel sheet after reducing enters the punching computing device thru the switch platform to entire the punching of connecting holes, seven-character button holes, etc., and then enters the roll forming process. Our fabric inlet is geared up with a fiber optic probe, which will procedure the metallic sheet in accordance to the form of the metallic sheet. The width is mechanically adjusted, there are 25 rows of forming rollers, the most important shaft diameter is 80mm, and the floor is difficult chrome plated to make certain the best define and gloss of the cable tray.
Covered area | 42×3.5×2.5 meters (length×width×height) | Material width | 220～1250mm |
Electricity parameters | Voltage 380V, 50Hz, 3 phases | Material thickness | 0.5～2.0mm |
Hydraulic oil | 46# anti-wear hydraulic oil | Production line speed | 1-12 m/min |
Prepared by user | Air source, hydraulic oil, mechanical oil, cables, and foundation required for the equipment | Rolling workpiece length | 2000-6000mm |
