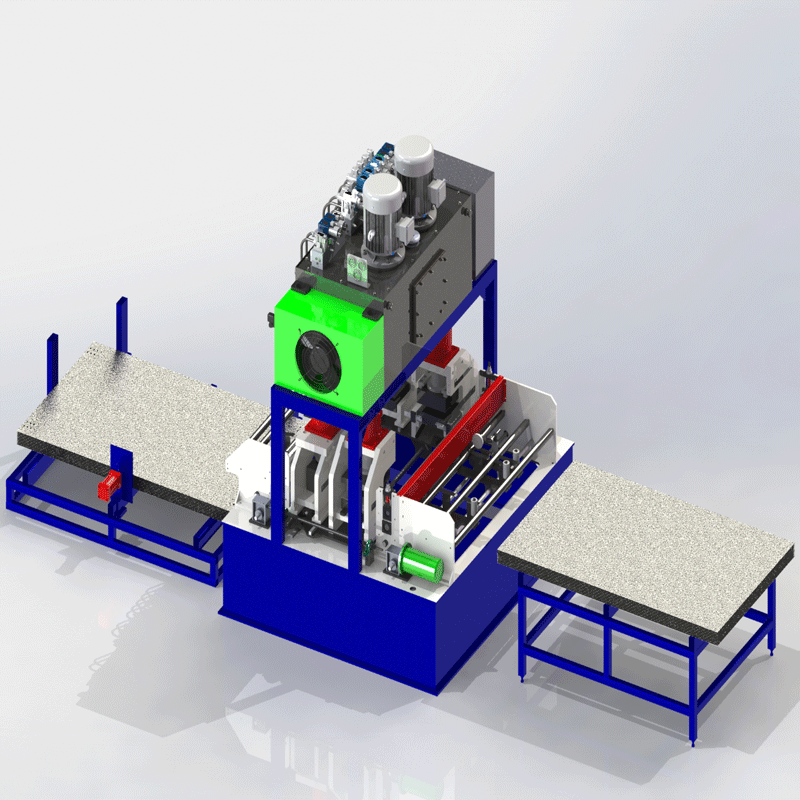

Full Servo Cable Tray Punching Machine
This cable tray punching machine is a full servo motor. The width adjustment, output, length, single and double row punching, etc. are all operated through the control panel. It has excellent performance, stable and efficient work, and supports customization. Given your needs, we will Give you the best solution!
Main omponent
1. One loading platform
2. Clamp feeding, feeding guide device, material width adjustment, sensor accurately locates the punching position
3. Hydraulic punching, connecting hole punching, seven-character buckle punching, hook hole punching, hydraulic system set of 7.5KW+7.5KW, punching mold: pneumatic switching of single and double row punches, marking
4. One unloading rack
Technical Parameters
order number | project | unit | numerical value |
1 | Material width | Mm | 180～1230mm |
2 | Material thickness | Mm | 0.5～2.0mm |
3 | material type | galvanized steel strip | |
4 | Equipment running speed | m/min | 1-12m/min |
5 | power | Kw | 20KW |
