Cable Tray Cover Forming Line
For manufacturers that mass-produce cable trays and cable tray covers, we have designed a separate cable tray cover production line, which saves time and cost and protects your large-volume orders.
Production specifications are customized according to your needs to provide you with the best solution

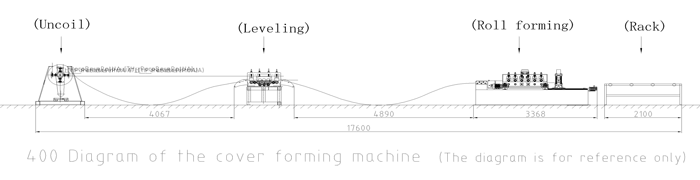

main component
1. Uncoiler, bearing capacity 2 tons

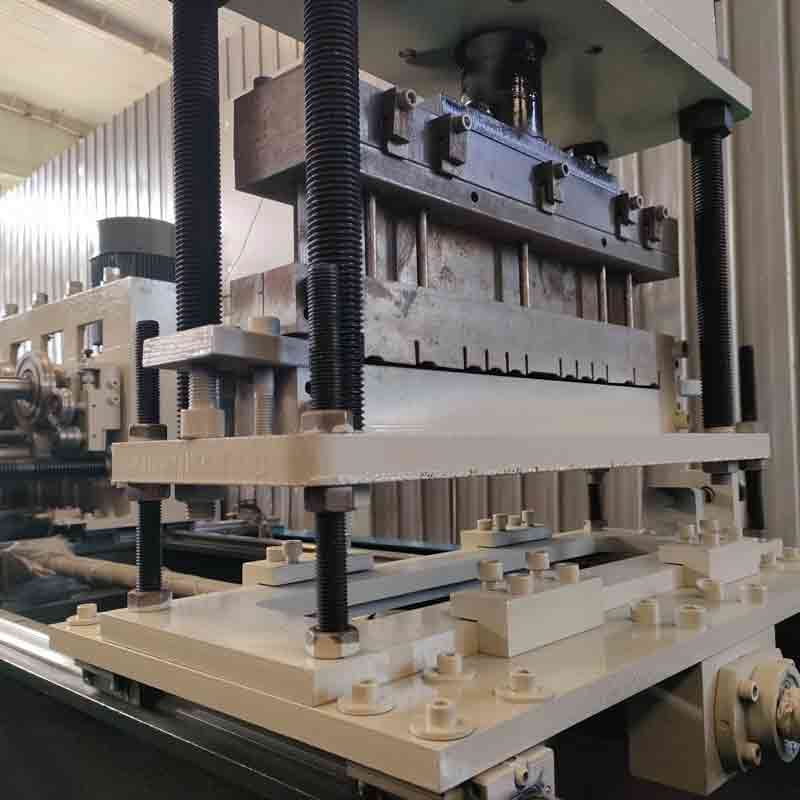

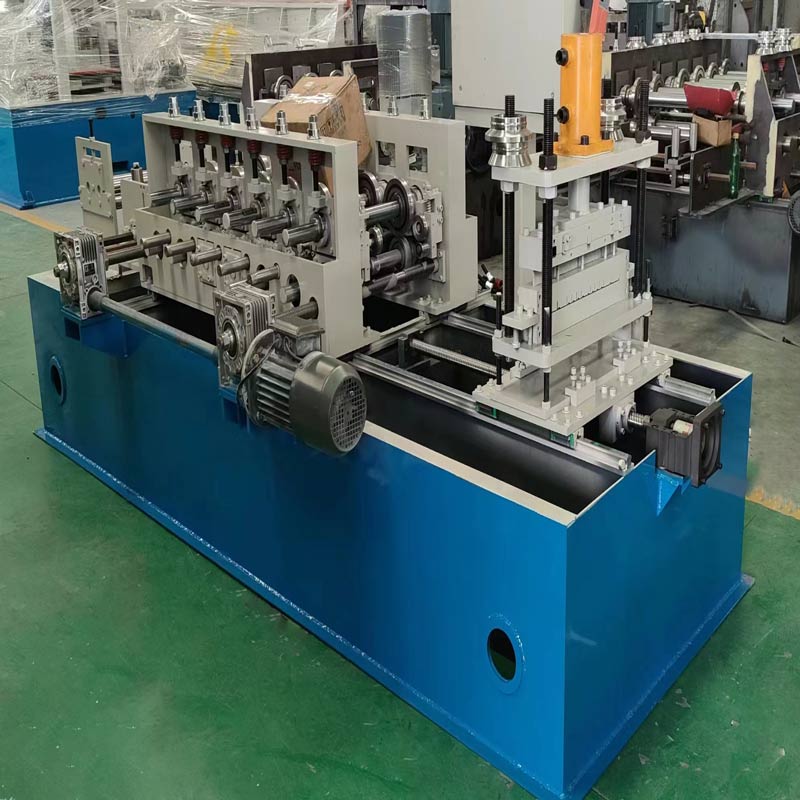

3. Roll forming part, main shaft φ40mm, surface hard chromium plating, 6 rows of forming rollers, reinforced ribs, hydraulic punching, 1 set of plane straightening after forming, roll material: GCr15, 1 set of hydraulic system 3.0KW
4. One unloading rack
5. PLC controller
Technical Parameters
order number | project | unit | numerical value |
1 | Material width | Mm | 60～430mm |
2 | Material thickness | Mm | 0.5～1.2mm |
3 | material type | galvanized steel strip | |
4 | Equipment running speed | m/min | 1-30m/min |
5 | power | Kw | 14KW |
