Cable Tray Cover Forming Line Width Adjustable

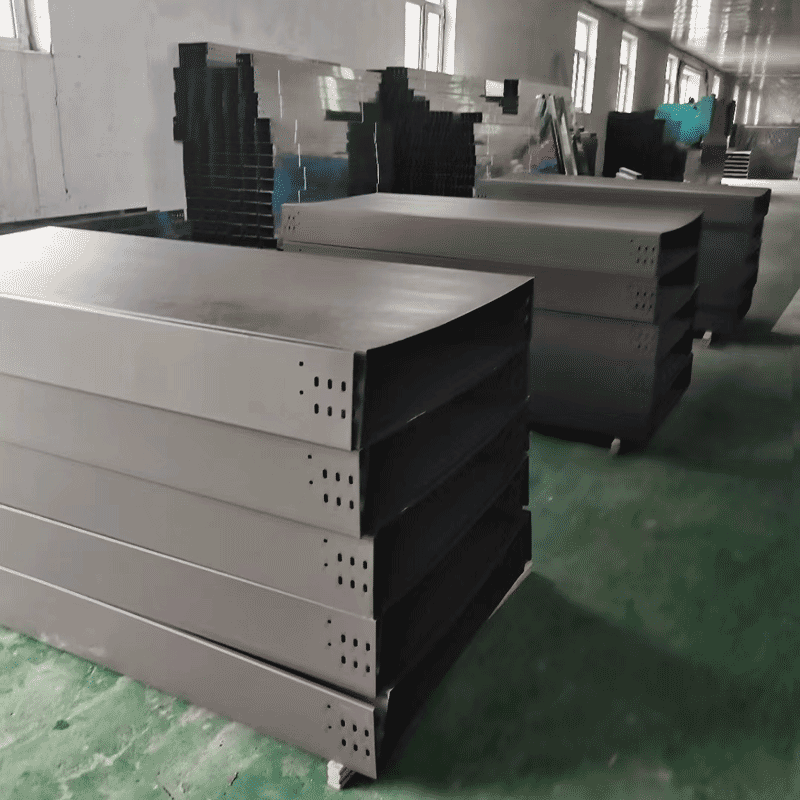

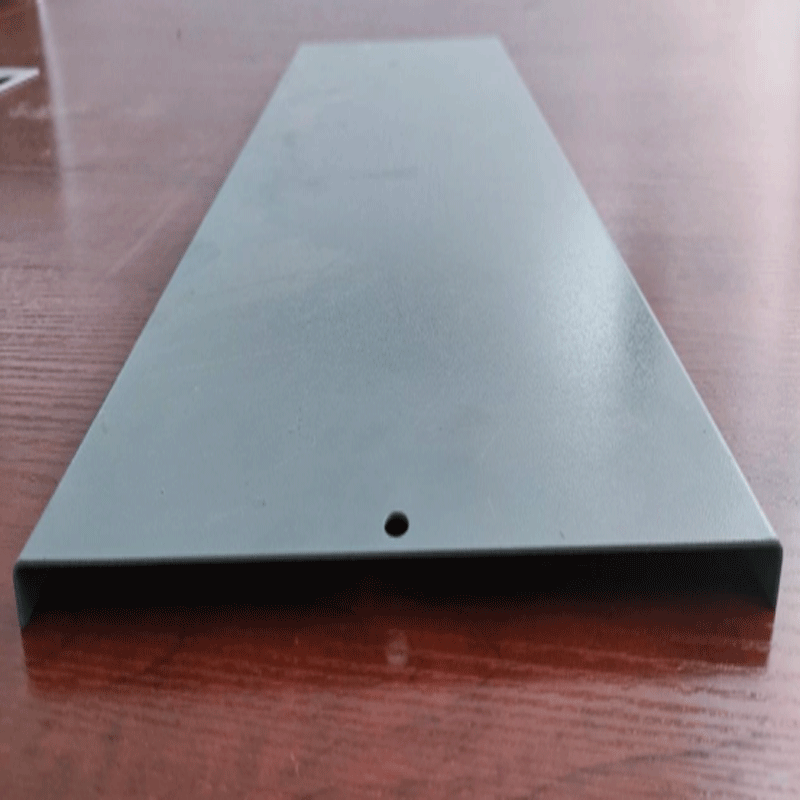

Cable trays should be covered with covers in environments or outdoor places that are prone to dust accumulation and other needs to be covered. This equipment produces cable tray covers and is automatically processed through computer control. It has the characteristics of simple operation, high processing precision, high production efficiency, less waste, Environmental protection, energy saving and other advantages.
Production specifications are customized according to your needs to provide you with the best solution

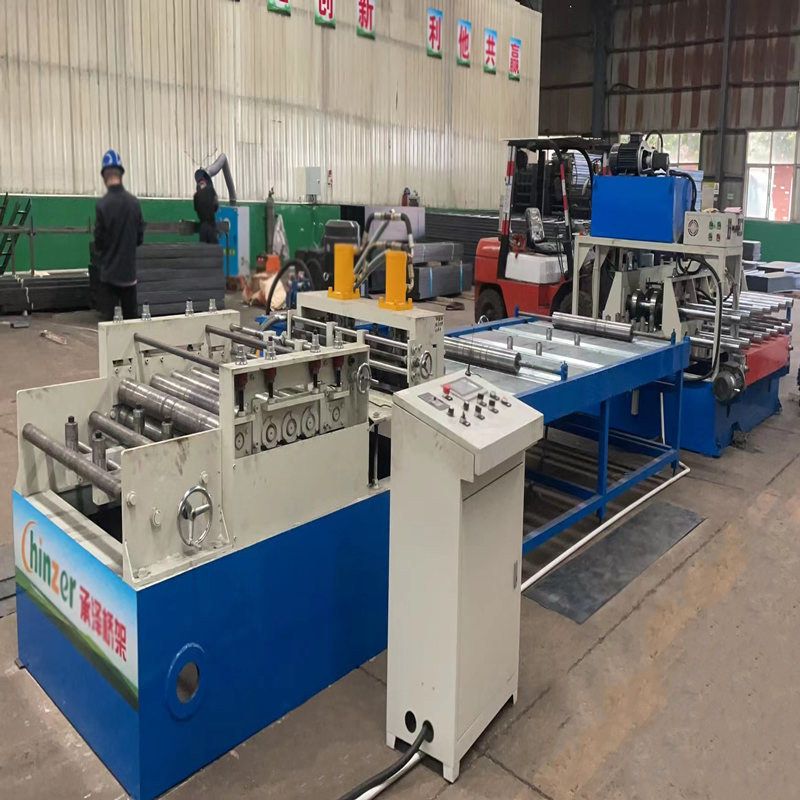

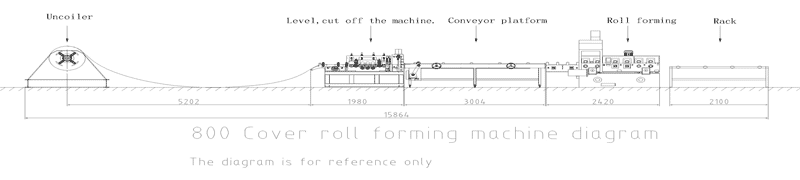

Main Component
1 open rolling machine —— hydraulic core rise, electric feed, load bearing 5 tons, distribution box (frequency conversion control slow up slow stop), hydraulic system a set of 3.0KW
2 leveling and cutting machine —— hydraulic system 11KW, hydraulic cutting, 11 roller leveling, 5.5KW motor
3 high-speed platform —— 1 high-speed platform, frequency conversion control, positive and reverse wire rod width adjustment, frequency conversion control

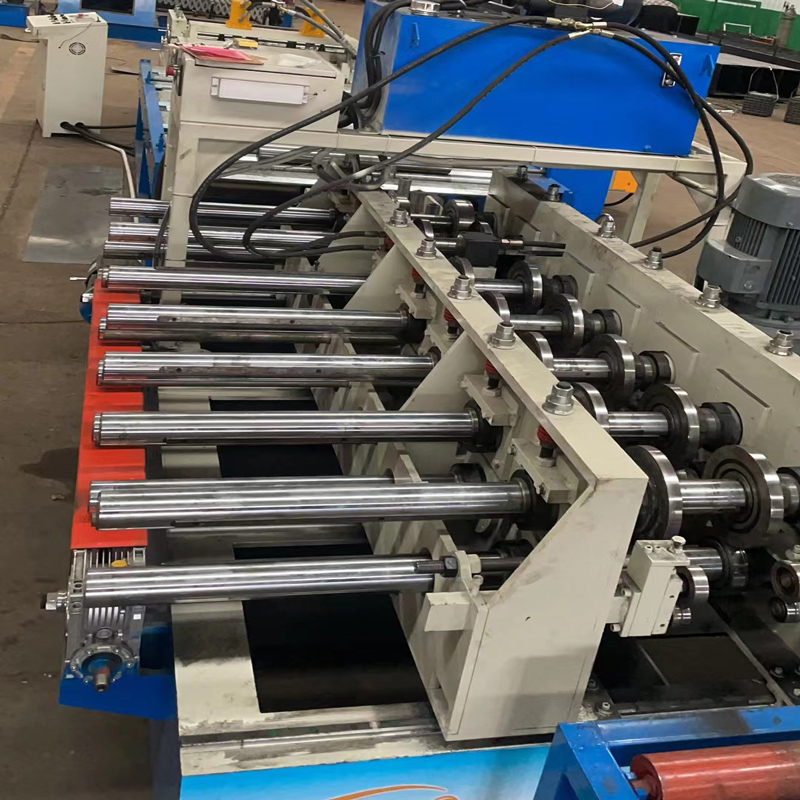

4 roller forming part —— spindle φ 60mm, surface hard chromium, forming roller 6 rows, reinforcing reinforcement, hydraulic punching, roll material: GCr15, hydraulic system a set of 3.0KW
5 unloading rack —— passive unloading rack 1 branch
Technical Parameters
order number | project | unit | numerical value |
1 | Material width | Mm | 60～830mm |
2 | Material thickness | Mm | 0.5～1.8mm |
3 | material type | Galvanized strip steel / galvanized steel plate | |
4 | Equipment running speed | m/min | 1-12m/min |
5 | power | Kw | 32KW |
