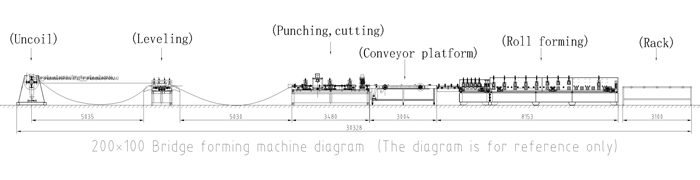

200mm Cable Tary Forming Machine
For high volume production, roll forming machine is a great way to produce cable tray, cable tray covers, this cable tray machine is equipped with hydraulic uncoiler, servo feed, mechanical punching machine, pre-cut, gearbox driven roll forming machine and product output conveyor. As a professional roll forming machine manufacturer, Zhike Qida Machinery has been manufacturing machines for producing various metal cable trays, cable tray covers and other related products.
Custom roll forming machines are also available, please feel free to call us for custom designs and pricing.
main component
1 open rolling machine —— manual core rise, active feeding, load-bearing 2 tons, distribution box (frequency conversion control slow slow stop)
2 leveling machine —— 5 roller leveling (top 2 bottom 3)
3 tracking punch —— feed code forward mechanism (positive and reverse wire bar), hydraulic punch, servo tracking, Hydraulic system with one set of 5.5+5.5KW
4 roller forming —— spindle φ 40mm, surface coated with hard chromium, forming roll 20 rows, the main machine is divided into 2 sections, side reinforcement, extended feed guide position, 1 set of plane calibration after forming, roll material: GCR 15
5 Tracking cut —— hydraulic cut (plug), servo tracking, hydraulic system a set of 5.5KW
6 unloading frame —— 1 branch of passive unloading rack
order number | project | unit | numerical value |
1 | Material width | Mm | 160～450mm |
2 | Material thickness | Mm | 0.5～1.2mm |
3 | material type | galvanized steel strip | |
4 | Equipment running speed | m/min | 1-35 m/min |
5 | power | Kw | 48KW |
