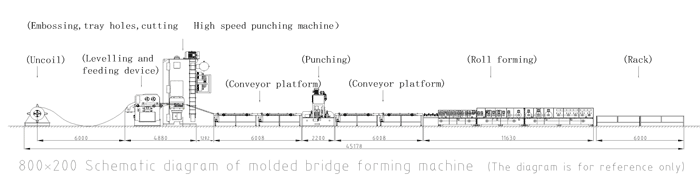

Cable Tray Forming Machine Factory Price
The forming machine is made of high-strength alloy steel and has a stable structure and reliable performance, ensuring long-term stable operation. At the same time, it is also equipped with an advanced control system and operating interface, which is easy to operate, maintain and repair.
Serial number | main component | Configuration | |
1 | 1. Hydraulic core expansion 4. Distribution box (frequency conversion control, slow start and slow stop) 2. Electric discharge 5. Hydraulic 3KW set 3. Bearing capacity 12 tons | ||
2 | Servo leveling feeder | 1、 Feeding code positive mechanism (positive and negative lead screw) 2、9 correction rollers, 4 up and 5 down 3、 4 feeding rollers, 2 up and 2 down 4、Servo feeding | |
3 | Pneumatic gantry punch | 1、Pneumatic gantry punch 2、1 set of combined grinding tools, mechanically molded 3、Bottom rib and side bulging molding 4、Pallet hole punching 5、Cut off 6、Shock absorbing pad 7、Mold transfer device | |
4 | Section A high-speed platform | 1、High-speed platform 6 meters (1 powered, 1 unpowered) 2、 Frequency conversion control 3、Positive and negative screw width adjustment | |
5 | Hydraulic punching | 1、 Connection hole punching 2、 Seven-character buckle stamping 3、 A set of hydraulic system 7.5KW+7.5KW 4、 Punching die: pneumatic switching of single and double row punches stamp | |
6 | Section B high-speed platform | 1、 High-speed platform 6 meters (1 powered, 1 unpowered) 2、 Frequency conversion control 3、Positive and negative screw width adjustment | |
7 | Roll forming part | 1、 Spindle φ80mm, surface hard chrome plated 5. Extended feeding guide 2、35 rows of forming rollers (single and double sides) 6. 1 set of flat surface straightening after forming 3、 The main machine is divided into 3 sections 7. Roll material: GCR15 4、 Long ribs on the side 8. Electric feeding | |
8 | Unloading rack | 1、2 passive unloading racks | |
9 | Control cabinet | 1、 The entire line adopts PLC control and touch screen human-machine interface to realize human-computer interaction. 2、Hardware configuration: Power distribution cabinet operation console, manual operation panel and wireless remote control next to the machine 3、 Operation mode: manual/automatic. In the manual state, it can operate as a stand-alone machine for easy maintenance; in the automatic state, it can operate across the entire line; it is equipped with an emergency stop button, making it easy to handle emergencies and ensuring the safety of equipment and operators | |
