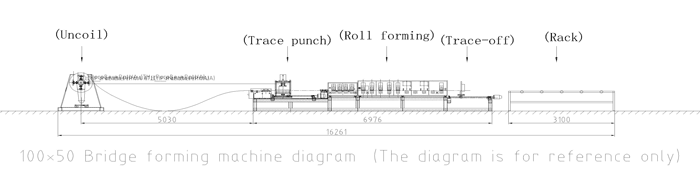

LW-Cable Tray Marking Machine
This equipment occupies a small area, has fast work speed, servo motor, chasing shearing and punching, staggered cutting, no waste, smooth incision, and no burrs!
This production line covers an area of 17 meters long and 25 meters wide. The materials used are 110~230mm, the thickness can be 0.5~1.2mm, the production speed is 30 meters per minute, and the production line power is 30kw
Configuration list
Serial number | main component | Configuration |
1 | 1、Type 300 manual core expansion 2、Passive discharge 3、Bearing capacity 1.5 tons 4、With brake function | |
2 | 1、Unpowered 5-roller leveling (upper 2 and lower 3) | |
3 | Trace punching | 1、Feeding code positive mechanism (positive and negative lead screw) 2、Hydraulic punching 3、Servo tracking 4、Hydraulic system set 5.5+5.5KW |
4 | 1、Spindle φ40mm, surface hard chrome plated 2、14 rows of forming rollers 3、The host is divided into 2 sections 4. 1 set of plane straightening after forming 5. Roll material: GCR15 | |
5 | Tracking cut off | 1、Hydraulic cut-off 2、Servo tracking 3、Hydraulic system set 5.5KW |
6 | Unloading rack | 1、1 passive unloading rack |
 7 | Control cabinet | 1. The entire line adopts PLC control and touch screen human-machine interface to realize human-computer interaction. 2. Hardware configuration: Power distribution cabinet operation console, manual operation panel and wireless remote control next to the machine 3. Operation mode: manual/automatic. In the manual state, it can operate as a single machine, which is convenient for maintenance; in the automatic state, it can operate across the entire line; it is equipped with an emergency stop button, which is easy to handle emergencies and ensures the safety of equipment and operators. |
