Solid Bottom Roll Forming Line
Our cable tray machines have super stability and durability, use advanced materials and unique designs, and can withstand the challenges posed by various complex environments. It has a solid structure, is safe and reliable, and provides stable support for your operations.

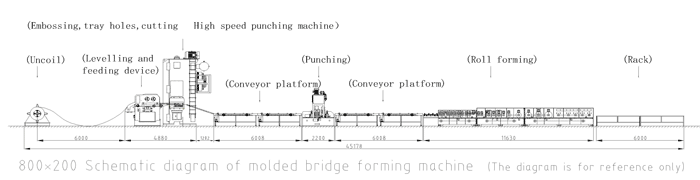

Serial number | main component | Configuration | |
1 | 1. Hydraulic core expansion 4. Distribution box (frequency conversion control, slow start and slow stop) 2. Electric discharge 5. Hydraulic 3KW set 3. Bearing capacity 12 tons | ||
2 | Servo leveling feeder | 1、 Feeding code positive mechanism (positive and negative lead screw) 2、9 correction rollers, 4 up and 5 down 3、 4 feeding rollers, 2 up and 2 down 4、Servo feeding | |
3 | Pneumatic gantry punch | 1、Pneumatic gantry punch 2、1 set of combined grinding tools, mechanically molded 3、Bottom rib and side bulging molding 4、Pallet hole punching 5、Cut off 6、Shock absorbing pad 7、Mold transfer device | |
4 | Section A high-speed platform | 1、High-speed platform 6 meters (1 powered, 1 unpowered) 2、 Frequency conversion control 3、Positive and negative screw width adjustment | |
5 | Hydraulic punching | 1、 Connection hole punching 2、 Seven-character buckle stamping 3、 A set of hydraulic system 7.5KW+7.5KW 4、 Punching die: pneumatic switching of single and double row punches stamp | |
6 | Section B high-speed platform | 1、 High-speed platform 6 meters (1 powered, 1 unpowered) 2、 Frequency conversion control 3、Positive and negative screw width adjustment | |
7 | Roll forming part | 1、 Spindle φ80mm, surface hard chrome plated 5. Extended feeding guide 2、35 rows of forming rollers (single and double sides) 6. 1 set of flat surface straightening after forming 3、 The main machine is divided into 3 sections 7. Roll material: GCR15 4、 Long ribs on the side 8. Electric feeding | |
8 | Unloading rack | 1、2 passive unloading racks | |
9 | Control cabinet | 1、 The entire line adopts PLC control and touch screen human-machine interface to realize human-computer interaction. 2、Hardware configuration: Power distribution cabinet operation console, manual operation panel and wireless remote control next to the machine 3、 Operation mode: manual/automatic. In the manual state, it can operate as a stand-alone machine for easy maintenance; in the automatic state, it can operate across the entire line; it is equipped with an emergency stop button, making it easy to handle emergencies and ensuring the safety of equipment and operators | |
