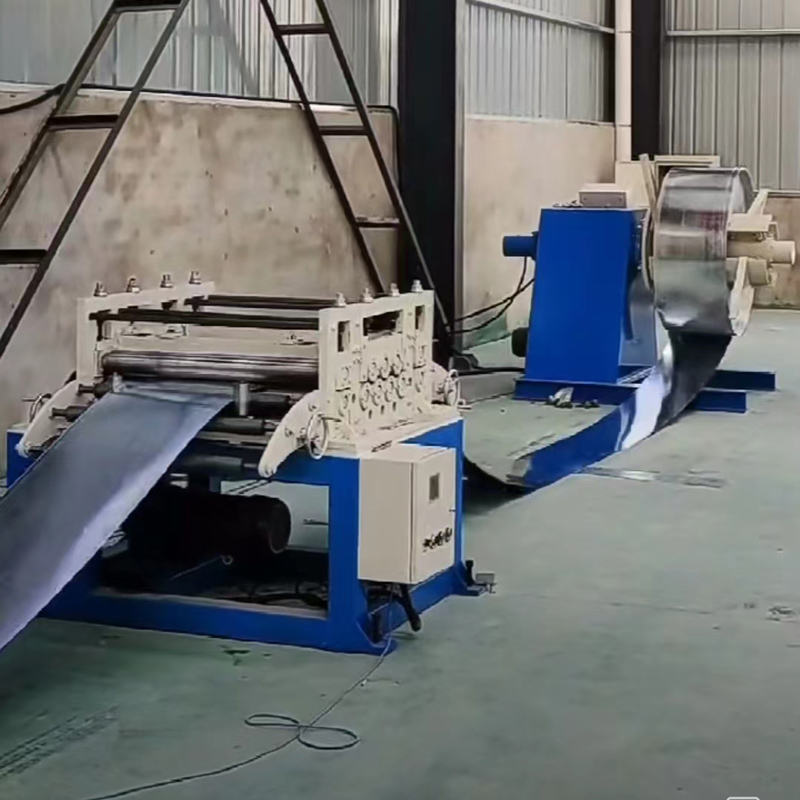

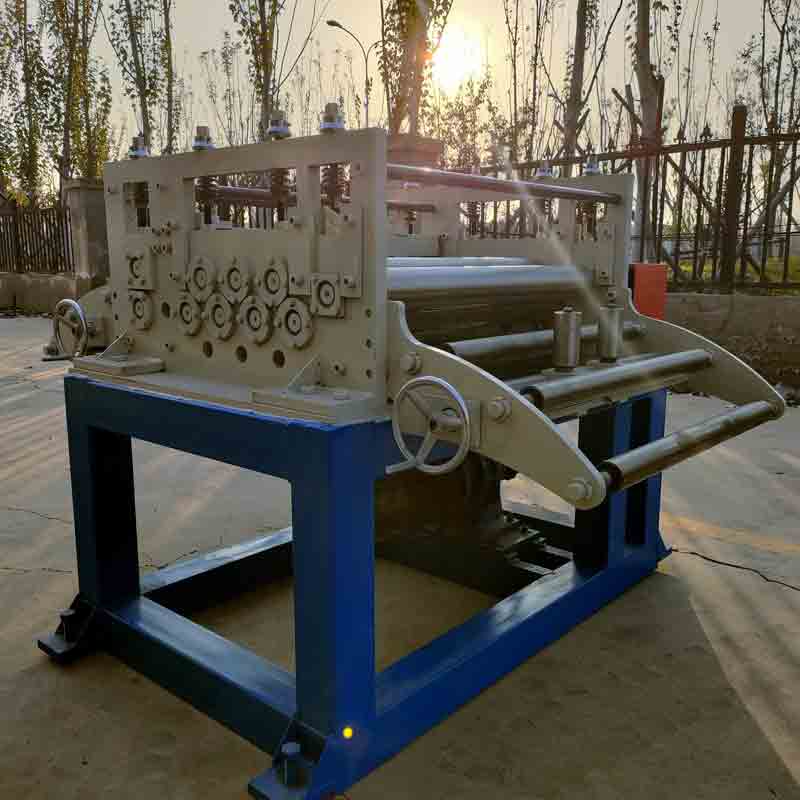

Leveling Machine
This leveling machine is equipped with advanced leveling rollers and control systems, which can quickly and stably level metal coils to the required flatness, greatly improving production efficiency and product quality. Metal coil leveling of different specifications and materials can be customized according to customer needs to meet the needs of different industries and projects. The use of high-quality materials and advanced manufacturing processes ensures the durability and reliability of the equipment, reducing maintenance costs and downtime.
a. Form: Roller type active leveling machine
b. Functional and structural features: leveling steel belt. It consists of pinch rollers and leveling rollers. The pinch rollers can be adjusted individually. The upper leveling roller adopts an integral structure and has two adjustment points at the front and rear, which can form a certain tilt angle to improve the leveling quality. The upper pinch feeding and leveling rollers are raised and lowered using 8.8-grade high-quality ball screws. The frequency conversion high-speed motor is connected to the worm gear reducer to drive and transmit it to the lower pinch roller and leveling roller. The feed end of the leveling machine is equipped with a pair of guide flat rollers and two pairs of guide vertical rollers. The guide vertical rollers can move in center and at the same time. Handwheel adjustment with scale for easy centering.
Both the front and rear of the leveling machine are equipped with feed bridge devices. An electronic detection device is installed between the leveling machine and the feeder, which sends a feedback signal to the control system. The control system issues instructions to the variable frequency high-speed motor to change the speed to control the storage capacity of the material tape and achieve the purpose of uninterrupted leveling.
The leveling work roll adopts GCr15 high-frequency quenching, and the hardness can reach HRC45-55.
Motor power: 7.5KW
