Perforated Metal Roll Forming Machine
Our cable tray forming machines use splendid substances and long lasting parts, which are precision processed and assembled to make certain lengthy lifestyles and excessive overall performance of the machine. At the identical time, we additionally supply preferential rate techniques and considerate after-sales services, so that you can revel in inexpensive expenditures whilst having incredible products.

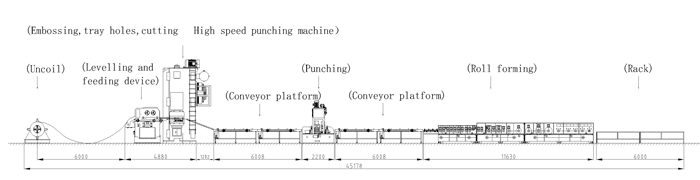

The equipment is equipped with a decoiler with a load capacity of 10 tons, hydraulic core expansion, electric feeding, and is equipped with a press arm. When the material roll is placed into the spindle, the hydraulic support arm slowly rises to drag the material roll. It has a higher load-bearing capacity and is more durable. It is easy to operate and has a feeder with a leveling function to smoothly feed the metal coil into the punch. With a large-tonnage punch and a stamping die, dense reinforcement punching or pallet hole punching can be easily completed. The metal after stamping is The plate enters the punching machine through the conveyor platform to complete the punching of connecting holes, seven-character button holes, etc., and then enters the roll forming process. Our feed inlet is equipped with an optical fiber probe, which will automatically adjust according to the width of the metal plate. The forming roller 35 rows ensure a perfect outline of the cable tray. Our philosophy is to make stable and reliable equipment and need to be equipped with better supporting equipment. We need to use well-known brands for punching machines with a high market share in the industry.
Manufacturers with better mold usage and higher smoothness during loading, unloading, maintenance and stamping. Our philosophy is that to make good products, we must choose excellent supporting partners and suppliers. The mold is equipped with a hydraulic lifting mold lifter and mold transfer device to facilitate the disassembly and replacement of the mold.
Technical Parameters
Serial number | main component | Configuration | |
1 | 1. Hydraulic core expansion 4. Distribution box (frequency conversion control, slow start and slow stop) 2. Electric discharge 5. Hydraulic 3KW set 3. Bearing capacity 12 tons | ||
2 | Servo leveling feeder | 1、 Feeding code positive mechanism (positive and negative lead screw) 2、9 correction rollers, 4 up and 5 down 3、 4 feeding rollers, 2 up and 2 down 4、Servo feeding | |
3 | Pneumatic gantry punch | 1、Pneumatic gantry punch 2、1 set of combined grinding tools, mechanically molded 3、Bottom rib and side bulging molding 4、Pallet hole punching 5、Cut off 6、Shock absorbing pad 7、Mold transfer device | |
4 | Section A high-speed platform | 1、High-speed platform 6 meters (1 powered, 1 unpowered) 2、 Frequency conversion control 3、Positive and negative screw width adjustment | |
5 | Hydraulic punching | 1、 Connection hole punching 2、 Seven-character buckle stamping 3、 A set of hydraulic system 7.5KW+7.5KW 4、 Punching die: pneumatic switching of single and double row punches stamp | |
6 | Section B high-speed platform | 1、 High-speed platform 6 meters (1 powered, 1 unpowered) 2、 Frequency conversion control 3、Positive and negative screw width adjustment | |
7 | Roll forming part | 1、 Spindle φ80mm, surface hard chrome plated 5. Extended feeding guide 2、35 rows of forming rollers (single and double sides) 6. 1 set of flat surface straightening after forming 3、 The main machine is divided into 3 sections 7. Roll material: GCR15 4、 Long ribs on the side 8. Electric feeding | |
8 | Unloading rack | 1、2 passive unloading racks | |
9 | Control cabinet | 1、 The entire line adopts PLC control and touch screen human-machine interface to realize human-computer interaction. 2、Hardware configuration: Power distribution cabinet operation console, manual operation panel and wireless remote control next to the machine 3、 Operation mode: manual/automatic. In the manual state, it can operate as a stand-alone machine for easy maintenance; in the automatic state, it can operate across the entire line; it is equipped with an emergency stop button, making it easy to handle emergencies and ensuring the safety of equipment and operators | |
