300mm Cable Tary Forming Machine
For high volume production, roll forming machines are a great way to produce cable trays, cable tray covers,

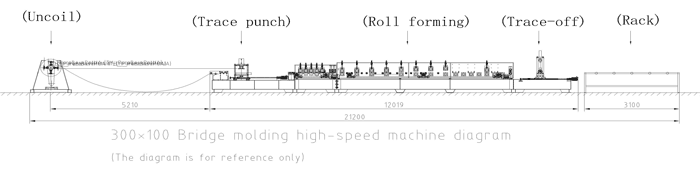

This cable tray machine is equipped with hydraulic uncoiler, servo feeding, mechanical punching machine, pre-cutting, gearbox driven roll forming machine and product output conveyor. As a professional roll forming machine manufacturer, Zhike Qida Machinery has been Manufactures machines to produce various metal cable trays, cable tray covers and other related products.
Custom roll forming machines are also available, please feel free to call us for custom designs and pricing.
main component
1. Uncoiler, load-bearing 4 tons, distribution box (frequency conversion control slow stop)
2. Leveling machine, 1 roller leveling (3 upper and 4 lower), power 4.0KW
3. All-in-one punching and cutting machine, code feeding forward rotation mechanism (forward and reverse screw), hydraulic punching, punching die manual pin conversion single and double row, hydraulic cutting, typing (trademark) (optional)
4. High-speed platform - high-speed platform, forward and reverse wire width adjustment, frequency conversion control
5. Roller forming part - main shaft φ50mm, surface hard chromium plating, extended feeding guide, 21 rows of forming rollers, main machine divided into 3 sections, 1 set of straight forming planes, coil material: GCR15, side reinforcements
6. Unloading rack - 1 passive unloading rack
Technical Parameters
order number | project | unit | numerical value |
1 | Material width | Mm | 160～550mm |
2 | Material thickness | Mm | 0.5～1.5mm |
3 | material type | Galvanized strip steel / galvanized steel plate | |
4 | Equipment running speed | m/min | 1-12 m/min |
5 | power | Kw | 48KW |
