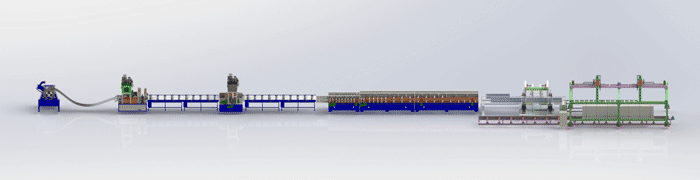

Cable Tray Production Equipment
Cable tray production equipment is designed for fully automatic mass production of cable tray structural troughs. We will make technical solutions for you based on your needs, such as color, logo, specifications of the products produced, punching size, layout, etc. We use Schneider PLC system: ensuring high accuracy and easy operation! Fully automatic control: Just enter the length and quantity of sheets you need, and the machine will start working according to your order. We will randomly send a lot of wearing parts to ensure that your production can proceed smoothly!
1、 Open coil ， hydraulic core rise, distribution box (frequency conversion control slow up slow stop), electric discharge, a set of hydraulic 3KW, bearing 8 tons
2 、leveling and cutting machine， 13 roller leveling, hydraulic system 11KW 2 group electric valve, 7.5KW motor, hydraulic cutting, tray punching
3、 A section high speed platform ， high speed platform 2 branches, the width of the positive and reverse wire rod adjustment, frequency conversion control
4、 punching machine ， motor 3 sets, distribution box, mold pneumatic conversion single and double row, oil cylinder heavy engineering cylinder
5、 B high speed platform ， high speed platform 2, the width of the positive and reverse wire rod adjustment, frequency conversion control
6、 roller forming part ， spindle φ 65mm, surface coated hard chrome, lengthened feed guide position, forming roller 23 rows, after forming the plane straight 1 set, the main engine is divided into 3 sections, roll material: GCR15, side + bottom reinforcement, electric feed
7、 unloading frame ，passive unloading rack 2 pieces
