Cable Tray Production Equipment With Complete Specifications
This cable tray roll forming machine is a machine carefully designed by Zhike Qida. It can produce plates within 1450mm in width, and the minimum can produce more than 240mm. All cable tray specifications during the period can be produced to meet your large batch orders. At the same time, we will also customize the model according to the size of your order. The larger the machine, the higher the price, and vice versa. As a professional roll forming machine manufacturer, Zhike Qida Machinery has been manufacturing and producing machines for various metal cable trays, cable tray covers and other related products.
Custom roll forming machines are also available, please feel free to call us for custom designs and pricing.

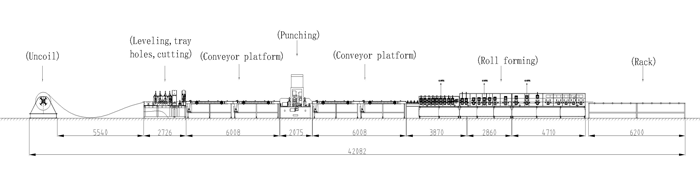

main component
1、Open winding machine，load-bearing ten tons of electric hydraulic open rolling machine
2、Leveling and cutting machine，13 roller leveling, hydraulic cutting, tray punching Section A high-speed
3、platform， high-speed platform 2 branches, frequency conversion control
4、Punch machine，hydraulic system (7.5kw2 sets), mold pneumatic conversion single and double row, oil cylinder heavy engineering cylinder, typing (trademark Section
5、 high-speed platform，high-speed platform 2 (1 electric 0.75kw, 1 passive), the width of the positive and reverse wire rod is adjusted
6、 Roller forming part，spindle φ 80mm, surface coated hard chromium, forming roller 25 rows, main divided into 3 sections, 7.5 kW motor 3, extended feed guide position, forming plane straight 1 set, roll material: GCR15, electric feed (1.2 kW servo motor 1)
7, unloading frame，passive unloading rack 2
A fully automatic cable tray roll forming machine offers several advantages in the cable tray manufacturing process. Here are some key benefits: 1. Increased Productivity: The fully automatic machine eliminates the need for manual labor, enabling higher production output. It can continuously roll form the cable tray components without interruptions, resulting in increased productivity and efficiency. 2. Consistent Quality: The automated process ensures consistent quality in the cable tray production. With precise control and measurements, the machine can accurately shape and form the trays, ensuring uniform dimensions and specifications for every piece. 3. Reduced Labor Costs: By automating the cable tray manufacturing process, companies can reduce labor costs. The machine can operate continuously with minimal human intervention, requiring fewer workers to operate and monitor the production. 4. Improved Safety: With a fully automated machine, operators are less exposed to potential safety hazards. The machine is equipped with safety features such as emergency stop buttons, protective guards, and sensors to prevent accidents and injuries. 5. Flexibility in Design: The machine can be programmed to produce different types and sizes of cable trays. This flexibility allows manufacturers to fulfill various customer requirements and adapt to changing market demands. 6. Time-saving: The automated process saves time in the cable tray production. It can efficiently roll form the trays, cut them to the desired lengths, and perform other necessary operations, reducing the overall manufacturing time. 7. Cost-effective: Despite the initial investment, a fully automatic cable tray roll forming machine can be cost-effective in the long run. Improved productivity, reduced labor costs, consistent quality, and time-saving benefits help manufacturers achieve higher profitability. In conclusion, a fully automatic cable tray roll forming machine offers numerous benefits, including increased productivity, consistent quality, reduced labor costs, improved safety, flexibility in design, time-saving, and cost-effectiveness. Investing in such a machine can greatly enhance the cable tray manufacturing process and contribute to the success of the business.
