Full Line Of Cable Tray Forming Machines
Our forming machine adopts an automated production method, and the bottom and height can be electrically adjusted. It can quickly and effectively produce cable trays of various specifications and models. Compared with manual operation, it saves time and manpower. The use of sophisticated control systems and molds ensures that the cable trays produced are highly accurate and consistent. This can ensure the quality and effectiveness of the cable tray. Cable trays of various shapes and sizes can be produced, including trough type, ladder type, tray type and other types to meet various cable routing needs.
Your concerns
1. Can one machine only produce one size?
No, the size is adjustable.
2. Do you have after-sales support?
Yes, we are happy to provide advice and also have skilled technicians to maintain the machine when needed.
3. Are you a trading company or a factory?
We are manufacturer.
4. How long can the machine make?
Under normal circumstances, a high-precision roll forming machine can be completed in 50 working days.
5. Do you provide customization?
Of course, we can design the equipment based on the structural cross-section data you provide. Our engineers can provide the best professional solutions to customers around the world. At the same time, we can provide door-to-door service.
6. What is the warranty period?
The 12-month warranty period is calculated from the date the equipment is successfully installed and debugged at the buyer's installation site.
8. Can we visit your factory?
Of course, a warm welcome to our factory is always available.

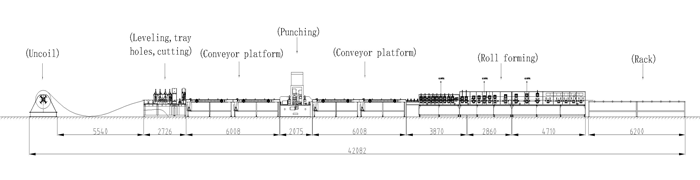

Hydraulic uncoiler, with a load capacity of 10 tons, hydraulic core expansion, easy operation and high safety!
The punching machine can punch connection holes, pallet holes, etc. It is controlled through the control panel and has a high degree of automation!
As for the roll forming host part, first of all, our feed inlet is equipped with a fiber optic probe, which can automatically open and close according to the width of the material. Below is our forming machine, which has 25 rows of forming rollers. The diameter of the main shaft is 90mm. The rollers have been ground, quenched, chromed, finished, polished, and chrome plated 0.05mm to ensure that all rollers are bright and strong. Our design makes the metal sheets acceptable Uniform to ensure a perfect cable tray profile.
The cable tray forming machine we produce can produce perforated cable trays, solid bottom cable trays, ladder-type cable trays, cable tray covers, etc. It can produce galvanized sheets, black belts, etc., with material thickness of 0.5-3.0mm. Production speed is 12 meters per minute
