LW-Cable Tray Roll Forming Machine

Zhike Qida's cable tray roll forming machines are specially designed to produce cable trays of various sizes, shapes and material types. First, the metal coil is put into the decoiler, and one end of the metal coil is put into the straightening machine. The straightened metal sheet is cut into the required length. The sheet of a certain length enters the punching machine through the conveyor platform for punching, and the process is completed. After punching, it enters the roll forming host through the conveyor platform, and the cable tray profile is formed through a series of forming rollers.

Contact Now E-Mail Telephone WhatsApp

Product Details

Our cable tray roll forming machines can quickly switch between different cable tray sizes and configurations so manufacturers can easily adapt to different customer needs and market trends.

Roll forming machine	product	maximum production speed	Material thickness	Material width	Shaft diameter
100x50mm	Cable tray	35-40m/minute	0.5-1.2mm	110-230mm	40mm
200x50mm	Cable tray	12-14m/minute	0.5-1.2mm	160-450mm	50mm
300x100mm	Cable tray	12-14m/minute	0.5-1.5mm	160-550mm	50mm
400x100mm	Cable tray	12-14m/minute	0.5-1.5mm	160-650mm	60mm
600x200mm	Cable tray	12-14m/minute	0.5-2.0mm	220-1050mm	70mm
800x200mm	Cable tray	12-14m/minute	0.5-2.5mm	220-1250mm	80mm
1000x200mm	Cable tray	12-14m/minute	0.5-3.0mm	220-1450mm	90mm

Process flow

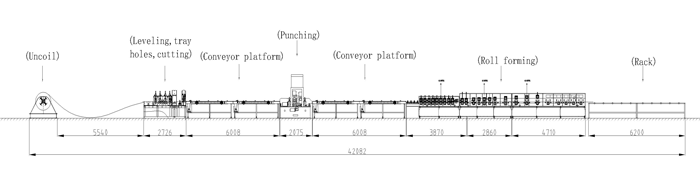

Uncoiler→Leveling and cutting machine→Conveyor platform→Punching machine→Conveyor platform→Roll forming host→Unloading rack

After-sales service

Our machines enjoy lifetime after-sales service

Promptly provide spare parts and wearing parts

Main component

No.	Item	quantity
1	Uncoiler	1 set
2	Straightening and cutting machine	1 set
3	punching machine	1 set
4	Roll forming machine	1 set
5	transmission	2 set
6	hydraulic station	3 set
7	Electrical control cabinet	1 set
