Custom Metal Roll Forming Machine
The automatic cable tray roll forming machine can quickly and efficiently complete the forming of cable trays and improve production efficiency. Roll forming ensures that cable trays are produced with consistent size and shape, improving product quality and appearance consistency. Automated production reduces the need for manual operations, saves labor costs, and also reduces human operation errors. It can be adjusted according to different design requirements to produce cable trays of different specifications and sizes to flexibly adapt to market needs. The cable tray roll forming machine with automated production function reduces human operation errors and improves the stability and consistency of production. The automated molding machine is easy to operate, reducing the operator's work intensity and improving safety.

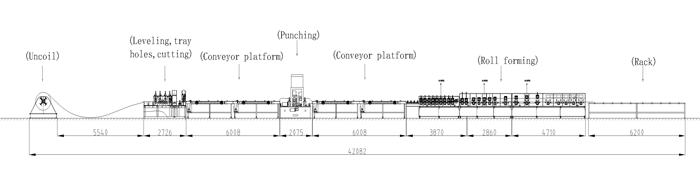

Serial number | main component | Configuration |

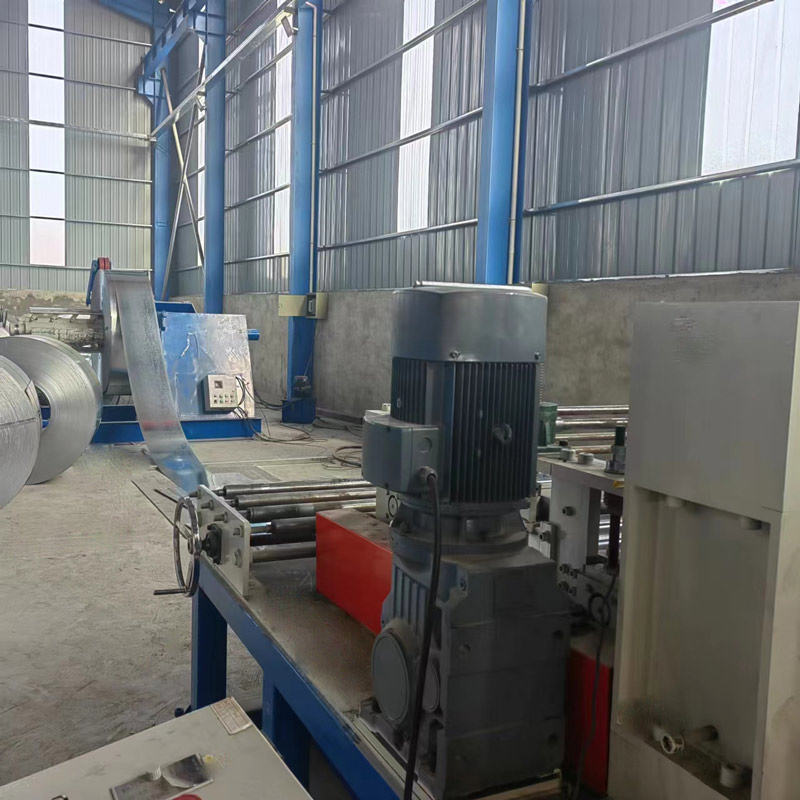

1 | 1. Hydraulic core expansion 4. Distribution box (frequency conversion control, slow start and slow stop) 2. Electric discharge 5. Hydraulic 3KW set 3. Bearing capacity 8 tons | |

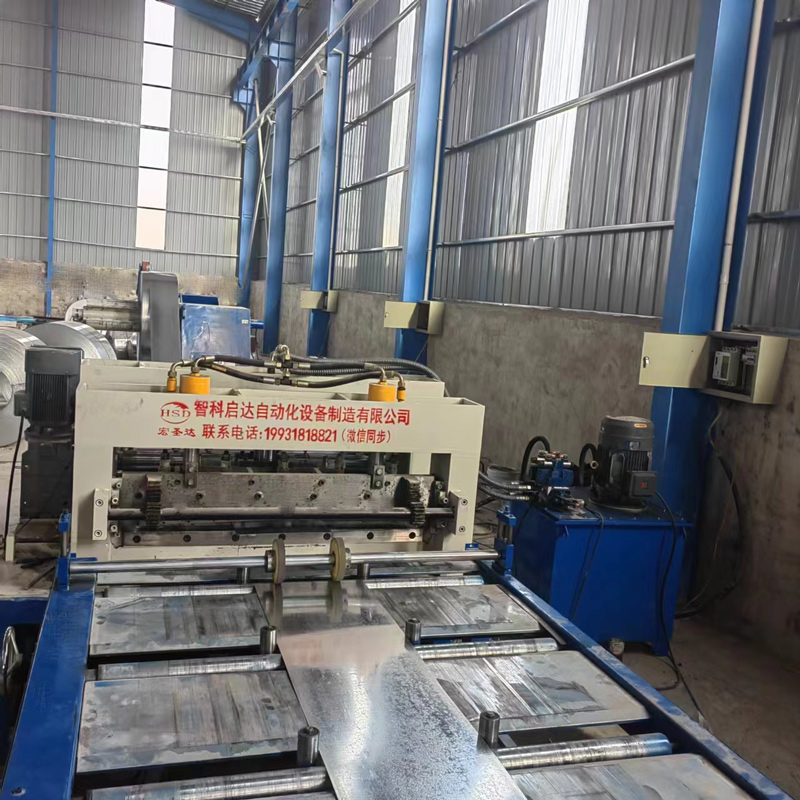

2 | Leveling and cutting machine | 1. Infeed coding mechanism (front and reverse lead screws) 4. 13-roller leveling 2. Hydraulic system: 1 set of 11KW and 2 sets of electric valves 5. 7.5KW motor 3. Hydraulic cutting 6. Pallet punching (optional) |
3 | Section A high-speed platform | 1. 1 high-speed platform 3. Adjustment of the width of the front and back screw rods 2. Frequency conversion control |
4 | 1. 3 sets of motors 4. Distribution box 2. Hydraulic system 5. Mold pneumatic conversion between single and double rows 3. Oil cylinder heavy engineering cylinder 6. Typing (trademark) (optional) | |
5 | Section B high-speed platform | 1. 2 high-speed platforms 3. Front and back screw width adjustment 2. Frequency conversion control |

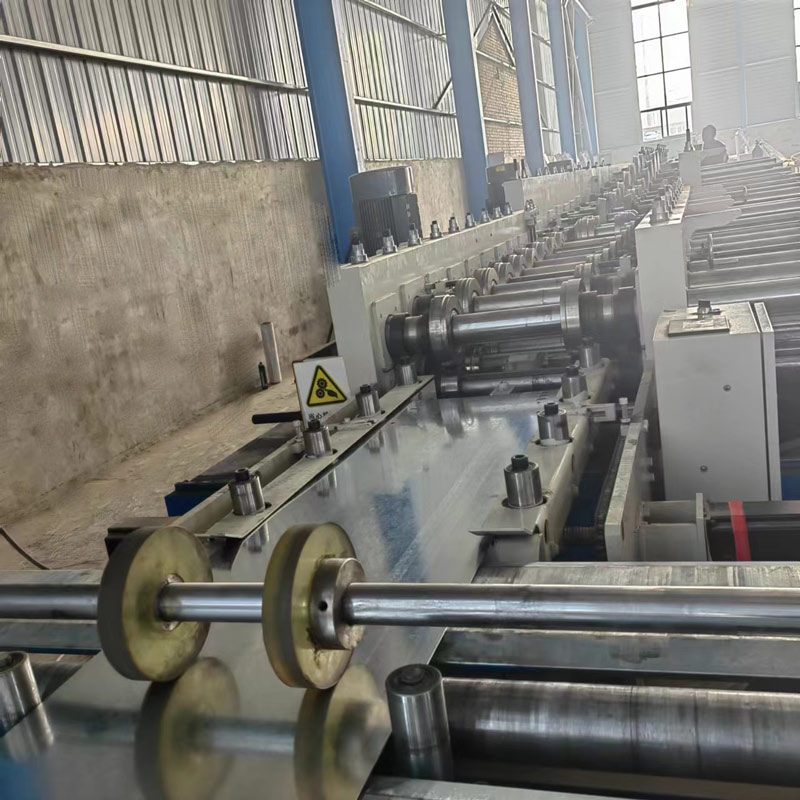

6 | Roll forming part | 1. Spindle φ70mm, surface hard chrome plated 5. Extended feeding guide 2. 25 rows of forming rollers 6. 1 set of flat surface straightening after forming 3. The main machine is divided into 3 sections 7. Roll material: GCR15 4. Side + bottom reinforcement 8. Electric feeding |
7 | Unloading rack | 1、2 passive unloading racks |
8 | Control cabinet | 1. The entire line adopts PLC control and touch screen human-machine interface to realize human-computer interaction. 2. Hardware configuration: Power distribution cabinet operation console, manual operation panel and wireless remote control next to the machine 3. Operation mode: manual/automatic. In the manual state, it can operate as a stand-alone machine for easy maintenance; in the automatic state, it can operate across the entire line; it is equipped with an emergency stop button, making it easy to handle emergencies and ensuring the safety of equipment and operators |
