Automatic Trunking And Cable Tray Machine
The cable tray forming machine is a professional piece of machinery designed to produce various specifications and types of cable trays. This cable tray forming machine adopts advanced production technology and high-quality materials to ensure efficient productivity and high-quality finished products. Whether it's a large enterprise or a small construction site, it can meet your needs for high-quality cable trays.

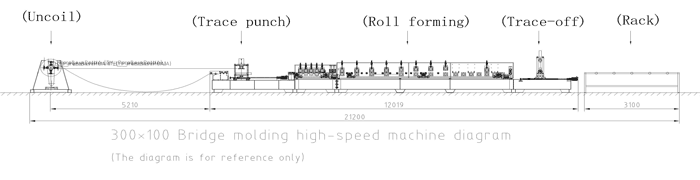

1. Uncoiler, manual core starting, load bearing 4 tons, distribution box (frequency conversion control slow stop)
2. Leveling machine, 11 roller leveling (3 upper and 4 lower), power 4.0KW
3. Integrated punching and cutting machine - code feeding forward rotation mechanism (forward and reverse screw), hydraulic punching, punching die manual pin conversion single and double row
, hydraulic cutting, typing (trademark) (optional)
4. High-speed platform - high-speed platform, forward and reverse wire width adjustment, frequency conversion control
5. Roller forming part - main shaft φ50mm, surface hard chromium plating, extended feeding guide, 21 rows of forming rollers, main machine divided into 3 sections, 1 set of straight forming planes, coil material: GCR15, side reinforcements
6. Unloading rack - 1 passive unloading rack
Technical Parameters
order number | project | unit | numerical value |
1 | Material width | Mm | 160~650mm |
2 | Material thickness | Mm | 0.5~1.5mm |
3 | material type | Galvanized strip steel / galvanized steel plate | |
4 | Equipment running speed | m/min | 1-12 m/min |
5 | power | Kw | 48KW |
