Perforated Metal Marking Machine
Our cable tray forming machines use high-quality materials and durable parts, which are precision processed and assembled to ensure long life and high performance of the machine. At the same time, we also provide preferential price strategies and thoughtful after-sales services, so that you can enjoy affordable prices while having high-quality products.
Hydraulic core expansion and decoiler, main body steel plate welding, load-bearing 10 tons
Electric unwinding, equipped with motor reducer, frequency converter controls the spindle unwinding
The pressing arm, controlled by a pneumatic wrench, packs the unused metal tape and plays a tightening role.
Hydraulic support arm, when the metal coil is put into the spindle, the hydraulic support arm slowly rises to drag the metal coil, which is equivalent to turning a cantilever-type material tray into a gantry-type material tray supported on both sides, with higher load-bearing capacity and longer service life. Longer and easier to operate.

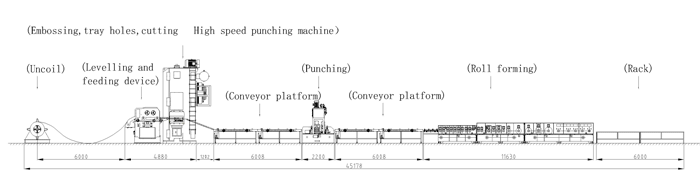

Product range: This stamping forming machine production line can roll cable tray products with a maximum thickness of 2.2 and is equipped with a 500-ton punch press. The punch press is from a well-known brand. The product width ranges from 100mm to 800mm and the height ranges from 50mm to 200mm. The tolerance requirements are long. Width (±1mm), angle 90° ±2°
Due to its high efficiency, a large amount of work can be completed in a short time, thus saving labor and time costs.
High precision: The punching cable tray forming machine has high-precision punching and forming capabilities, which can produce more accurate and high-quality cable trays.
Wide scope of application: It is suitable for the production of cable trays of various sizes and types, and can meet the needs of different users.
Easy operation: high degree of automation, simple and convenient operation, which can greatly reduce the labor intensity of workers.
Easy maintenance: The punching cable tray forming machine has a simple structure and is easy to maintain, which can reduce maintenance costs.
In summary, the punching cable tray forming machine has the advantages of high efficiency, high precision, wide application range, easy operation, and convenient maintenance. It can greatly improve the production efficiency and quality of cable trays, and bring more to users. convenience and benefits.
