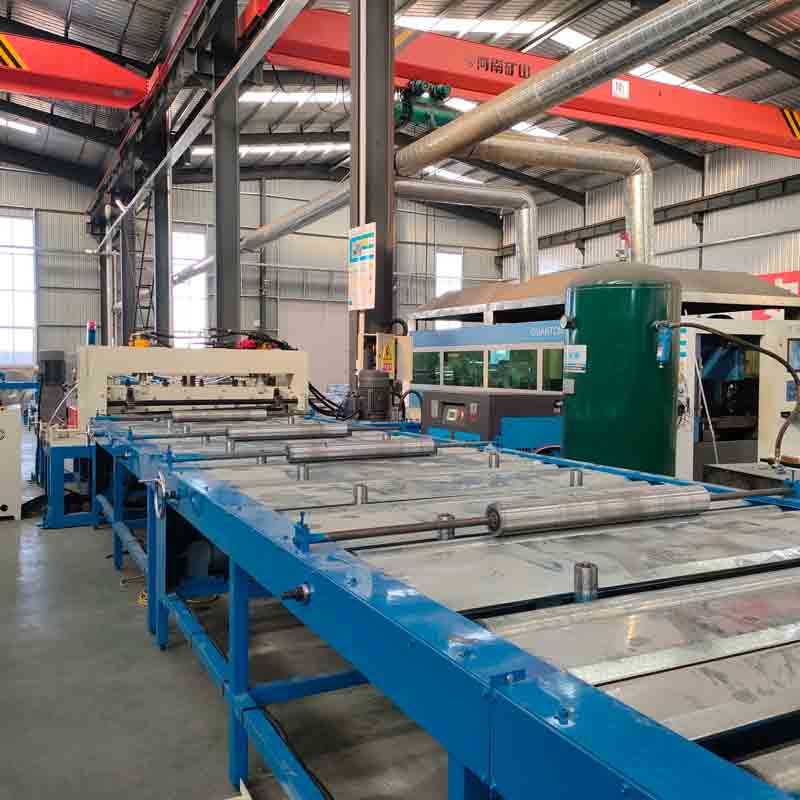

200-1000mm Cable Tray Machine
According to the needs of customer orders, we designed and produced this large-scale cable tray roll forming machine. It can produce metal sheets with a width of 220-1450mm. The main machine adopts a through-shaft design and is equipped with a servo motor, which is easy to adjust, has a high degree of automation, and is fully integrated. The machine is made of high-quality materials, with high safety and long service life!
This is the cable tray forming machine we produce, which can produce perforated cable trays, solid bottom cable trays, ladder cable trays, cable tray covers, etc. It can produce galvanized sheets, black belts, etc., with material thickness of 0.5-3.0mm. The production speed is 12 meters per minute.
First of all, this is an uncoiler with a load capacity of 10 tons, hydraulic core expansion, and easy operation.
This is an all-in-one leveling and cutting machine with 13-roller leveling, which can straighten the plate of your tape.
If your order requires pallet punching, this is also done here
Here is the punching machine, connecting holes, seven-character button holes, etc. and stamping of trademarks are all completed here. All actions are controlled through the control panel.

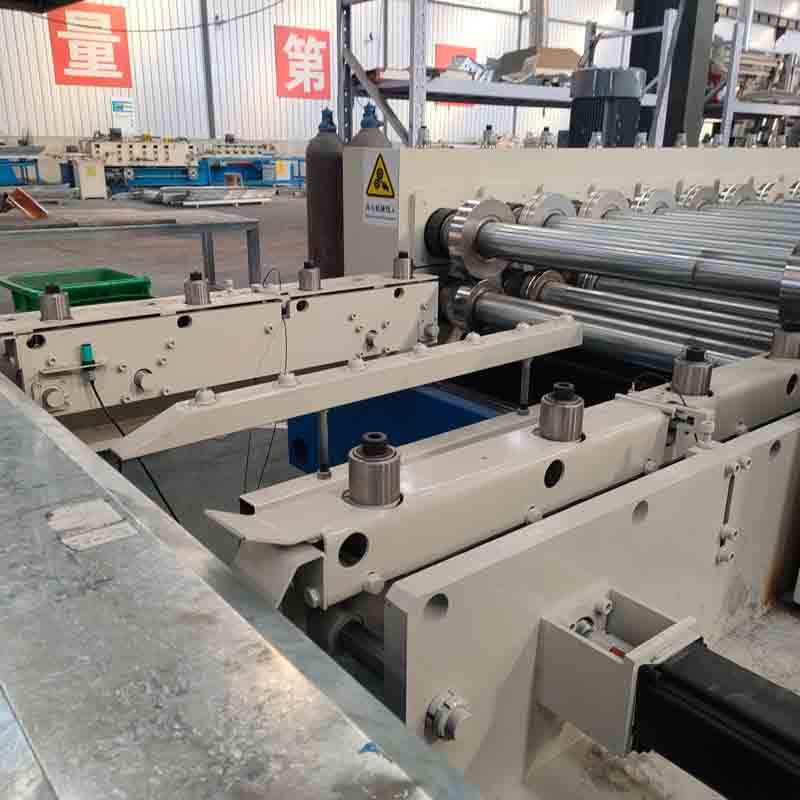

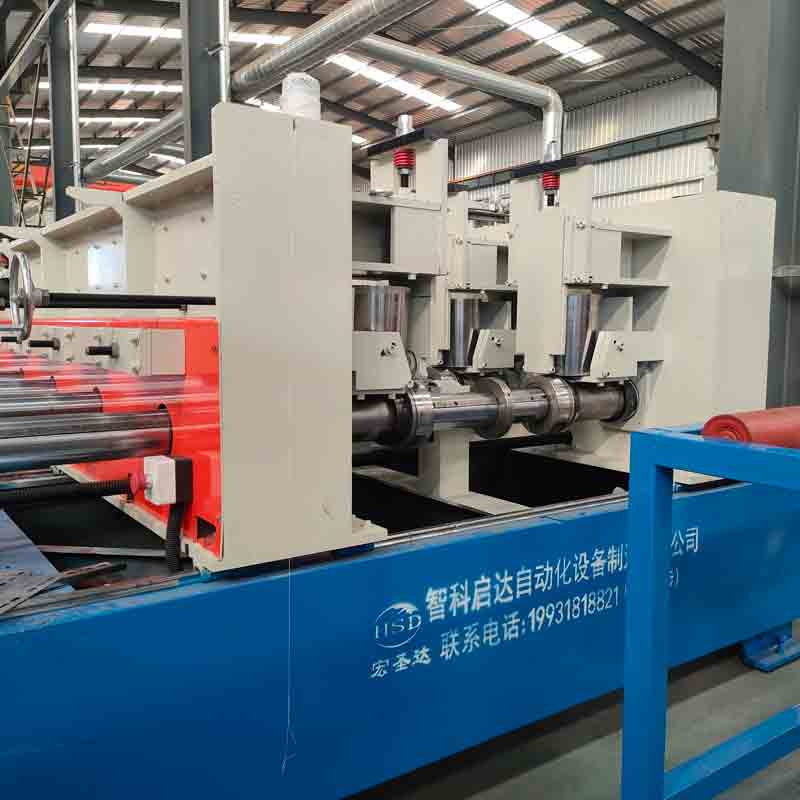

Next comes the roll forming host part. First of all, our feed inlet is equipped with a fiber optic probe, which can automatically open and close according to the width of the material. Below is our forming machine, which has 25 rows of forming rollers. The diameter of the main shaft is 90mm. The rollers have been ground, quenched, chromed, finished, polished, and chrome plated 0.05mm to ensure that all rollers are bright and strong. Our design makes the metal sheets acceptable Uniform to ensure a perfect cable tray profile.
