Cable Tray Production Machine
This cable tray roll forming machine is a piece of equipment carefully designed by Zhike Qida. It can produce plates with a width within 1450mm, and the smallest plate can produce plates with a minimum width of 240mm or more. All cable tray specifications throughout the period can be produced to meet your bulk orders. At the same time, we will also customize the mold according to the size of your order. The bigger the machine, the higher the price and vice versa. As a professional roll forming equipment manufacturer, Zhike Qida Machinery has been manufacturing and producing a variety of machines for steel cable trays, cable tray covers and different related products.

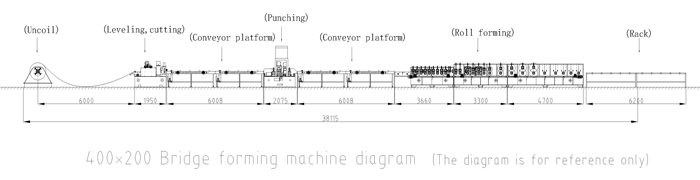

1. Uncoiler, hydraulic core expansion, distribution box (frequency conversion control slow rise and slow stop), hydraulic 3KW set, load-bearing 8 tons
2. Leveling and cutting machine, 13-roller leveling, hydraulic system 11KW, 2 sets of electric valves, 7.5KW motor, hydraulic cutting, pallet punching
3. A-section high-speed platform, 2 high-speed platforms, forward and reverse screw width adjustment, frequency conversion control
4. Punch machine, 3 motors, distribution box, mold pneumatic conversion single and double row, oil cylinder heavy engineering oil cylinder
5. B high-speed platform, high-speed platform 2, forward and reverse screw width adjustment, frequency conversion control
6. Roller forming part, spindle φ65mm, surface hard chromium plating, extended feeding guide, 23 rows of forming rollers, 1 set of flat surfaces after forming, main machine divided into 3 sections, roller material: GCR15, side + bottom reinforcement, electric feeding
7. Unloading rack, 2 passive unloading racks
Technical Parameters
order number | project | unit | numerical value |
1 | Material width | Mm | 220～860mm |
2 | Material thickness | Mm | 0.5~1.8mm Black band thickness is 0.6-1.2mm |
3 | material type | Galvanized strip steel / galvanized steel sheet / black strip | |
4 | Equipment running speed | m/min | ：1-12 m/min |
5 | power | Kw | 65KW |
